Permalution employs passive Raschel meshes to harvest water from fog, offering a sustainable solution to water scarcity.

‍

Objective

Develop a novel mesh design that surpasses the water yield performance of the Raschel mesh, while being durable, quick to produce, affordable and sustainable.

1 - Project Scope: Design & Validation

2 - Next Steps: Field-Testing in Peru

3 - End Goal: Global Deployment

‍

Novel Mesh Design

The proposed mesh uses concepts from fog harps and vertical textured filament mesh designs.

Material Selection:

Hydrophobic wires
Durable material to withstand high wind speeds

Geometric Design:

Absence of horizontal cross-members that restrict waterflow
Multi-layer geometry to promote turbulent air flow and provide a larger collection area

Predicting Water Collection Rate

To inform the geometry of the new mesh, virtual simulations were run to gauge the relative water collection rates of alternative mesh geometries.

‍

Testing Water Collection Rate

The team built a wind tunnel to compare mesh designs in a controlled environment. Wind speed and fog input were controlled and temperature and humidity were measured for consistency between trials.

‍

‍

‍

‍

Result: Novel Mesh Increases Water Yield

92% increase in water yield.

The novel mesh meets the design objectives and offers a solution that has the potential to better address water scarcity worldwide.

‍

‍

‍

Field implementation

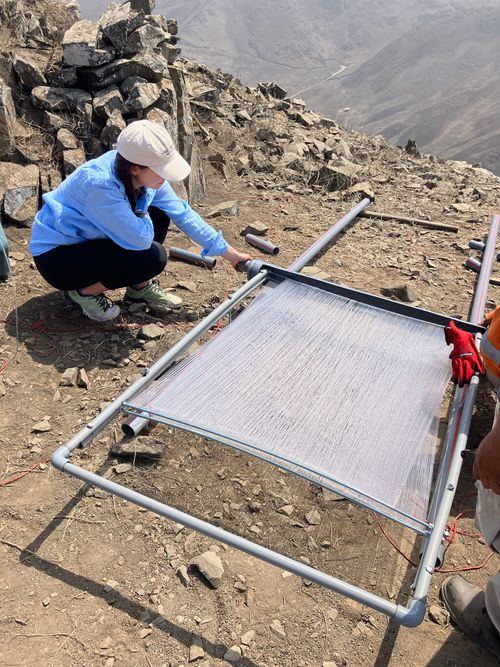

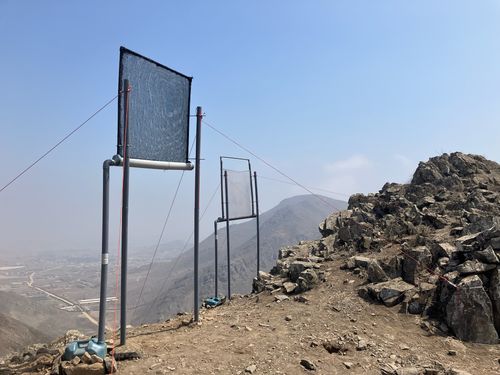

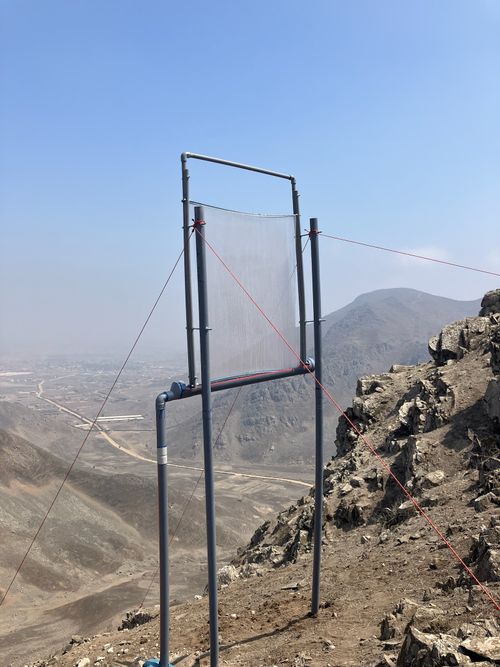

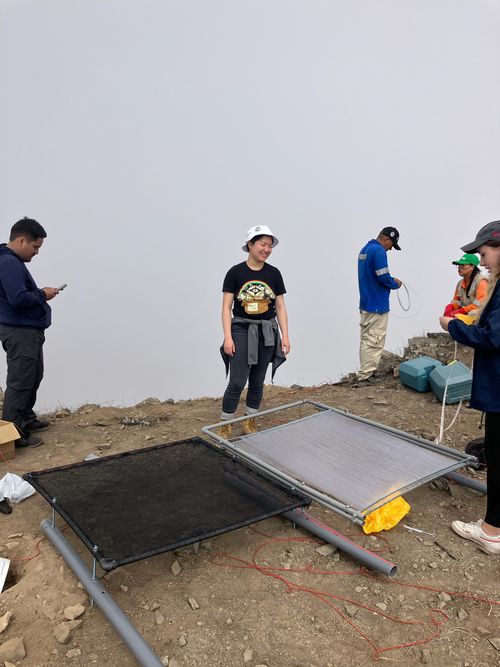

The team travelled to Peru to install a large scale version of the Raschel Mesh and the novel mesh design. The fog harvesting devices will be monitored over an extended period to compare their respective water yields.
